Programmable digital display thermostat

Product parameters Product features

◆Temperature sensing element: NTC ◆Simple and fast installation method

◆Temperature control accuracy: ±1℃ ◆Beautiful and generous appearance

◆Temperature setting range: 5～35℃ ◆Light touch button operation

◆Display mode: LCD ◆Control electric ball valve, electric valve, solenoid valve

◆Press the key: lightly touch the key. ◆Using high-reliability single-chip microcomputer, strong anti-interference

◆Power supply voltage: AC85～260V, 50/60Hz ◆Set different working modes by pressing buttons

◆Load current: 2 A (resistive load), 1 A (inductive load) ◆Relay output

◆Power consumption: <1W ◆With temperature calibration function

◆Shell material: PC+ABS (flame retardant) ◆With antifreeze function

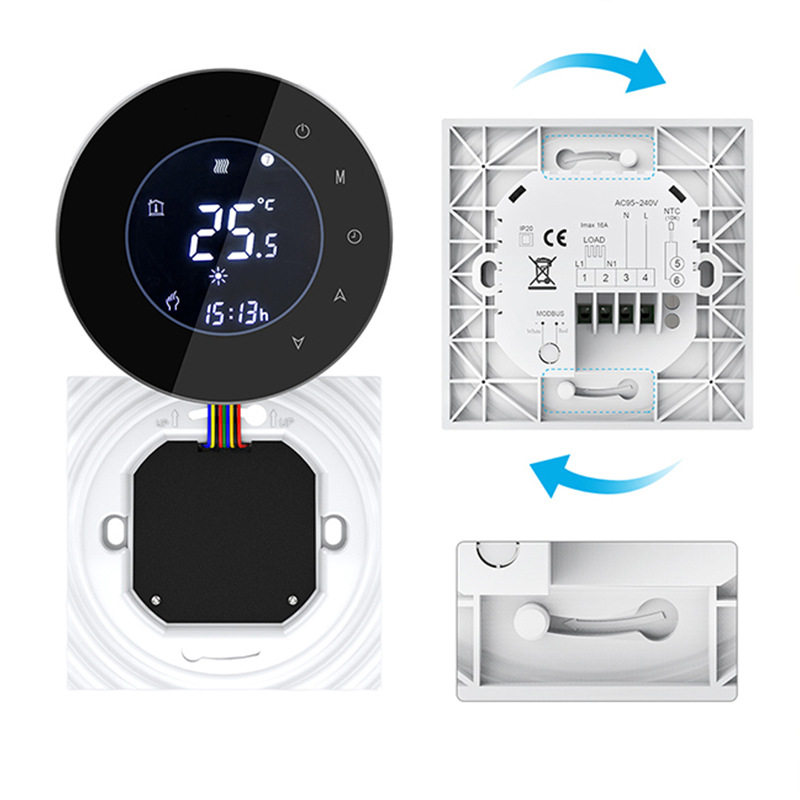

◆Dimensions: 86×86×13mm (width×height×thickness) ◆Terminal wiring

◆Installation method: standard 86 box installation ◆Shell flame-retardant material PC+ABS

◆Installation hole distance: 60 mm (standard) ◆Large screen LCD display

◆Wiring mode: terminal crimping ◆Can be equipped with clock, white, blue backlight optional

◆Wire cross-sectional area: 0.5～2.5mm2 ◆Pass the safety and high reliability test

◆Working environment: 0～45℃, 5～95% RH (no condensation)

◆Storage temperature: -10～55℃‘
